Brass Mortise Lifts

Finger Lifts
Our Brass Mortise Lifts, Finger Lifts, and Projected Lifts come in a variety of sizes and styles to accommodate
any period or architectural style. We offer a broad scope of colors and finishes to meet every need.

# 107

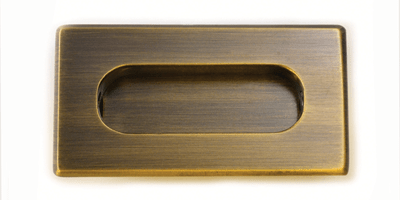

Casted Brass Lift Small
Length: 3 15/16″ Width: 1 11/16″ Depth: 7/16″
Mortise Length: 2 1/2″ Mortise Width: 15/16″
Mortise Depth: 7/16″
Casted Brass Lift Large
Length: 3 15/16″ Width: 1 7/8″ Depth: 9/16″
Mortise Length: 2 1/2″ Mortise Width: 15/16″
Mortise Depth: 11/16″

# 222

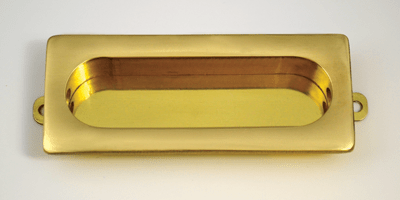

Forged Brass Lift
Length: 3 1/8″ Width: 1 5/16″ Depth: 1/2″
Mortise Length: 2 7/8″ Mortise Width: 1 11/16″
Mortise Depth: 3/8″

# 2165

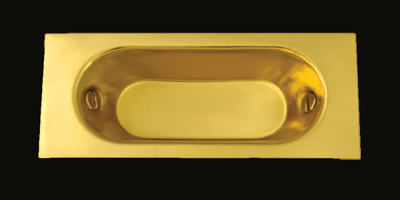

Stamped Brass Lift
Length: 3″ Width: 1 1/8″ Depth: 3/8″
Mortise Length: 2 3/8″ Mortise Width: 11/16″
Mortise Depth: 3/8″

# 3021
Cast Brass Lift
Length: 5″ Width: 1 13/16″ Depth: 3/8″
Mortise Length: 3 11/16″ Mortise Width: 1 5/8″
Mortise Depth: 5/16″

# 3222
Casted Brass Lift Small
Length: 4″ Width: 1 11/16″ Depth: 1/2″
Mortise Length: 3 1/4″ Mortise Width: 1″
Mortise Depth: 3/8″ 1/16″ Plate Thickness

# 4222
Casted Brass Lift
Length: 4 15/16″ Width: 1 3/4″ Depth: 7/16″
Mortise Length: 4 1/4″ Mortise Width: 1 1/4″
Mortise Depth: 3/8″

# 4225
Cast Brass Lift
Length: 3 1/2″ Width: 1″ Depth: 7/16″
Mortise Length: 2 3/4″ Mortise Width: 7/8″
Mortise Depth: 5/16″
